Components


The picture component can display an image with additional information.

Contents

  1. Component status
  2. Image sizes
Open this example in new tab

HTML

<figure class="tna-picture" data-module="tna-picture">
  <div class="tna-picture__image-wrapper tna-background-tint">
    <picture>

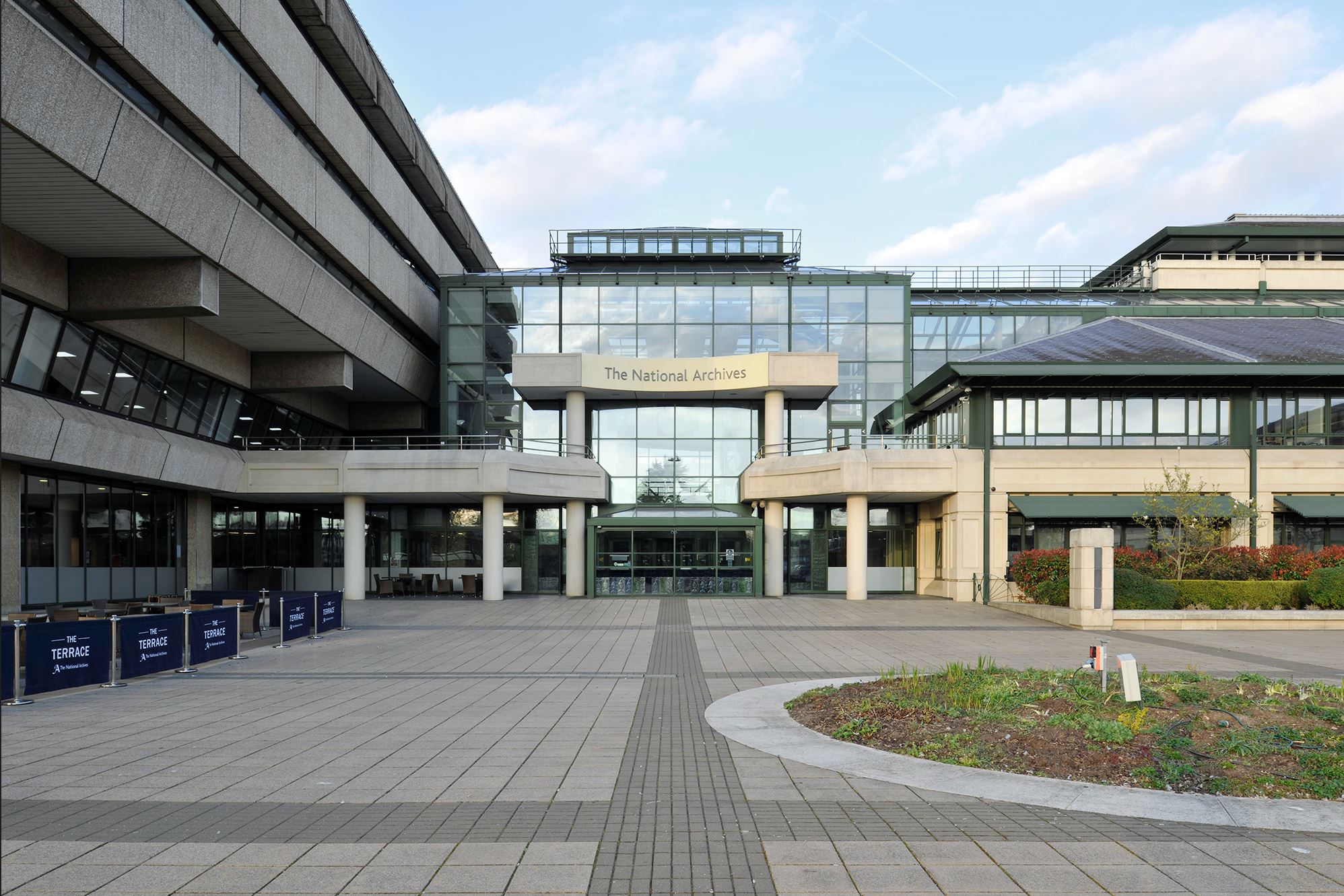

      <img class="tna-picture__image" width="1996" height="1331" src="https://www.nationalarchives.gov.uk/wp-content/uploads/sites/24/2023/07/tna-building-compress.jpg" alt="The front of the National Archives building" loading="lazy">
    </picture>
  </div>
  <figcaption class="tna-picture__caption">
    <p>The front of the National Archives building in Kew, formally the Public Records Office</p>
  </figcaption>
</figure>

Nunjucks

Nunjucks options
Primary options
Name Type Description
src string

Required.

The URL of the image.
alt string

Required.

Alternative text for the image.
width number

Required.

The width of the image in pixels.
height number

Required.

The height of the image in pixels.
sources array

Alternative sources of the image.

See macro options for sources.
caption string

An optional caption for the picture.
informationLabelOpen string

An optional label for the button which shows information about the picture.

Default value: Open transcript
informationLabelClose string

An optional label for the button which hides information about the picture.

Default value: Close transcript
informationItemHeadingLevel number

The heading level which represents an element from <h1> through to <h6> for each of the information items. Required if information is set.
information array

A list of information tabs related to the picture.

See macro options for information.
classes string

Classes to add to the picture.
attributes object

HTML attributes (for example data attributes) to add to the picture.
Options for sources
Name Type Description
src string

Required.

The URL of the image.
type string

Required.

The MIME type of the image.
media string

A conditional media rule for the image.
width number

The width of the image in pixels.
height number

The height of the image in pixels.
Options for information
Name Type Description
id string

Required.

A unique ID for the picture information item.
title string

Required.

The title of the picture information item.
body string

Required.

The body text of the picture information item.


{% from "nationalarchives/components/picture/macro.njk" import tnaPicture %}

{{ tnaPicture({
  src: "https://www.nationalarchives.gov.uk/wp-content/uploads/sites/24/2023/07/tna-building-compress.jpg",
  alt: "The front of the National Archives building",
  width: 1996,
  height: 1331,
  caption: "<p>The front of the National Archives building in Kew, formally the Public Records Office</p>"
}) }}

Jinja

Important information

This is an experimental feature that outputs a Jinja template based on the Nunjucks example. Check the converted code for accuracy.
{% from "components/picture/macro.html" import tnaPicture %}

{{ tnaPicture({
  "src": "https://www.nationalarchives.gov.uk/wp-content/uploads/sites/24/2023/07/tna-building-compress.jpg",
  "alt": "The front of the National Archives building",
  "width": 1996,
  "height": 1331,
  "caption": "<p>The front of the National Archives building in Kew, formally the Public Records Office</p>"
}) }}

Component status

Phase
Official (ready to use in production)

Image sizes

Picture components need to show the entire image so they are free from aspect ratio restrictions.

Ensure the longest side of the image is no more than 900px.
